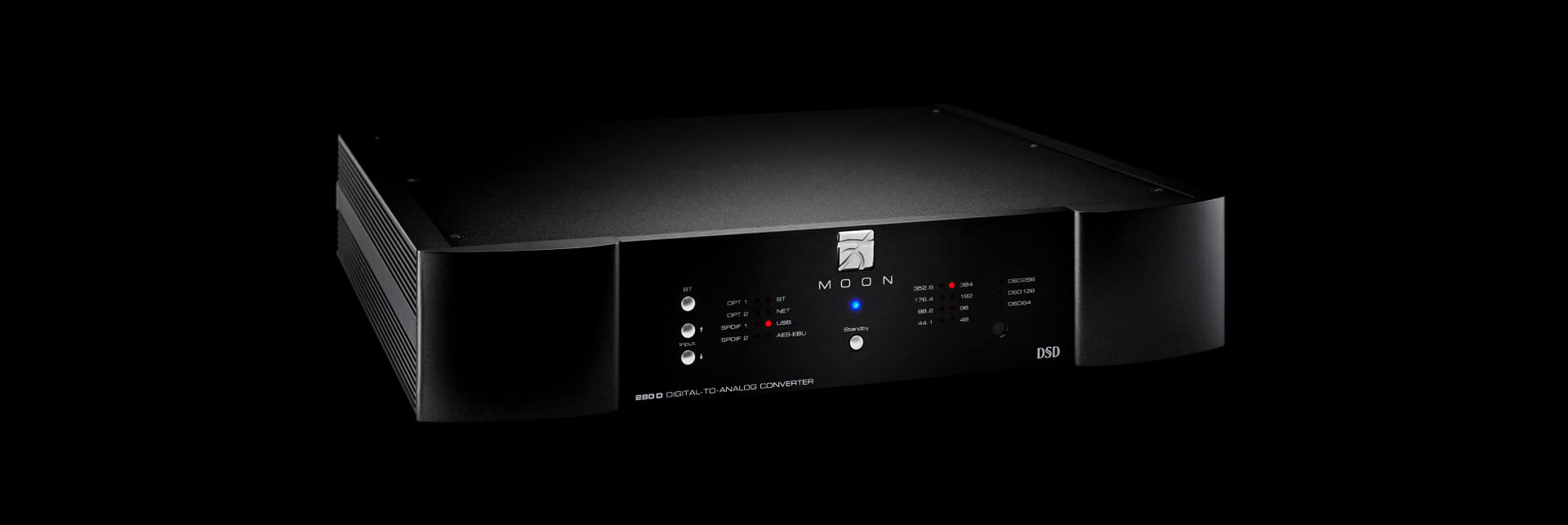

MOON - 280D
DAC 280D có khả năng giải mã DSD256 trực tiếp mà không cần chuyển đổi qua PCM. Mặt khác, các định dạng PCM cũng hỗ trợ tới mức 32 bit / 384kHz. Với bộ lọc tín hiệu 3 lớp và mạch kiểm soát nguồn DC servo hứa hẹn âm thanh trong trẻo, nền nhạc tĩnh lặng.
Ngoài việc hỗ trợ sẵn điều khiển bằng điện thoại, máy tính bảng thông qua kết nối Bluetooth hỗ trợ codec aptX, chiếc DAC 280D còn có tùy chọn nâng cấp bằng MiND (MOON intelligent Network Device), là một thiết bị streaming nhạc không dây tiên tiến, bổ sung khả năng nhận tín hiệu âm thanh qua Wi-Fi hoặc dây Ethernet.
Moon 280D được trang bị tới 6 cổng input cho DAC 280D, gồm AES/EBU x 1, S/PDIF x 2, TosLink x 2, USB x 1.
Imagine a world of music right at your fingertips. The 280D makes this a reality. Simply launch your favorite music services app on your smart device and pair it to the 280D using Bluetooth technology. Then sit back and enjoy the music.
The extraordinary digital engine within the 280D decodes native DSD up to DSD256, as well as PCM up to 32-bit/384kHz, including DXD. The fully balanced analog stage features an exceptional 3rd order filter for lifelike transparency. The result is a level of fidelity that creates an emotional connection to your music.
Adding the optional MiND module provides convenience and a full graphic interface, allowing you to effortlessly access your digital music library with power and flexibility. Which ever way you use the Neo 280D, we are convinced that it will become the center of your musical pleasure.
Of course, key features you’d expect in a MOON Neo Series product are present such as SimLink™, RS-232 and IR ports for custom-install environments.
CONFIGURATION BALANCED DIFFERENTIAL | Balanced Differential |
DIGITAL FILTER / DIGITAL-TO-ANALOG CONVERTERS | Fully asynchronous 32-bit |
FREQUENCY RESPONSE (FULL RANGE) | 2Hz - 100kHz +0/-3dB |
THD @1KHZ, 0DBFS (A-WEIGHTED) | 0.001% |
INTERMODULATION DISTORTION | 0.002% |
DYNAMIC RANGE | 120dB |
SIGNAL-TO-NOISE RATIO | 118dB @ full output |
CHANNEL SEPARATION | 116dB |
INTRINSIC JITTER | 1 picosecond RMS 32-bit |
ANALOG OUTPUTS – BALANCED | 1 pair XLR – Fixed Level |
ANALOG OUTPUTS – SINGLE ENDED | 1 pair RCA – Fixed Level |
ANALOG OUTPUT @ 0DBFS - XLR / RCA | 2.0 Volts – Fixed Level |
ANALOG OUTPUT IMPEDANCE - XLR / RCA | 100Ω |
DSD DATA RATES VIA USB | (2.8224MHz), Double (5.6448MHz) & Quadruple (11.2896) |
DSD SAMPLE RATES VIA USB | DSD 64, DSD 128 & DSD256 |
DSD VIA MIND DSD 64 | DSD 64 (2.8224MHz) |
PCM BIT-DEPTH RANGE | 16 - 32 bits (32-bit via USB only) |
PCM SAMPLING FREQUENCY RATES | 44.1 - 384kHz (352.8 & 384kHz via USB only) |
DIGITAL INPUTS (7) | 1 x AES/EBU , 2 x S/PDIF, 2 x TosLink, 1 x USB, 1 x Bluetooth |
REMOTE CONTROL | Full-Function CRM-2 |
POWER CONSUMPTION @ IDLE | 10 watts |
AC POWER REQUIREMENTS | 120V / 60Hz or 240V / 50Hz |
SHIPPING WEIGHT | 16 lbs / 7.5 Kgs |
DIMENSIONS (W X H X D, INCHES / CM) | 16.9 x 3.4 x 13.1 / 42.9 x 8.6 x 33.3 |
